OS3510 Surface Mount Strain Sensor

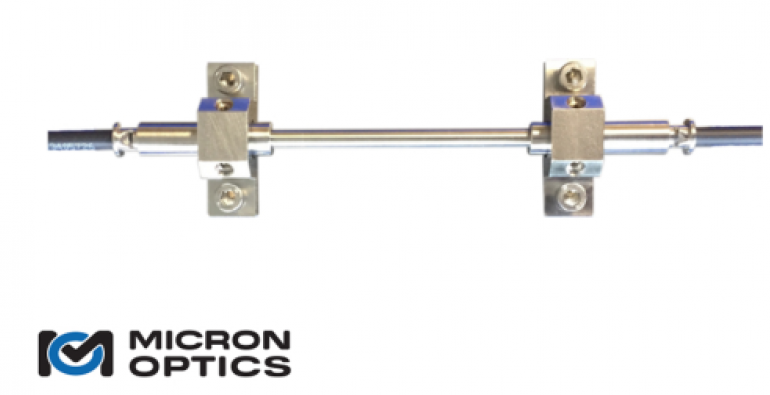

The os3510 is based on fiber Bragg grating (FBG) technology. The os3510 is intended exclusively for surface mounting. Each end of the os3510 is attached to the structure via rigid brackets that are either welded, bolted, epoxied, or grouted to the surface of a concrete, rock, steel, composite, or other structure.

A rugged, stainless steel body, ruggedized cables and optional connector protection fittings make the os3510 suitable for harsh environments. Two FBGs are well protected inside the os3510 body. One FBG measures strain, and the other provides for integrated temperature compensation. Since there are no epoxies holding the fiber to the carrier, longterm stability is ensured by design.

In side-by-side comparisons with vibrating-wire and foil strain gages, the os3510 is equally sensitive and accurate, while providing 100 times more fatigue life. The os3510 strain gage is qualified for use in harsh environments and delivers the many advantages inherent to all FBG based sensors.

This sensor can be used alone or in series as part of an FBG sensor array. Installation and cabling for such arrays is much less expensive and less cumbersome than comparable electronic gage networks.

Key Features

Temperature compensation sensor integrated inside.
Measurement of relative temperature for compensation of strain measurements.
Qualified to same rigorous standards applied to comparable electronic gages.
Connector protection fittings available for harsh environments.
Fast, Simple, repeatable installation
Ruggedized sensor package.
Double ended design supports multiplexing of many sensors on one fiber Micron Optics’ patented micro opto-mechanical technology

Applications

Structures (bridges, dams, tunnels, mines, buildings, oil platforms)
Energy (wind turbines, oil wells, pipelines, nuclear reactors, generators)
Transportation (railways, trains, roadways, specialty vehicles, cranes)
Marine vessels (hull, deck, cargo containers)
Aerospace (airframes, composite structures, wind tunnels, static and dynamic tests)

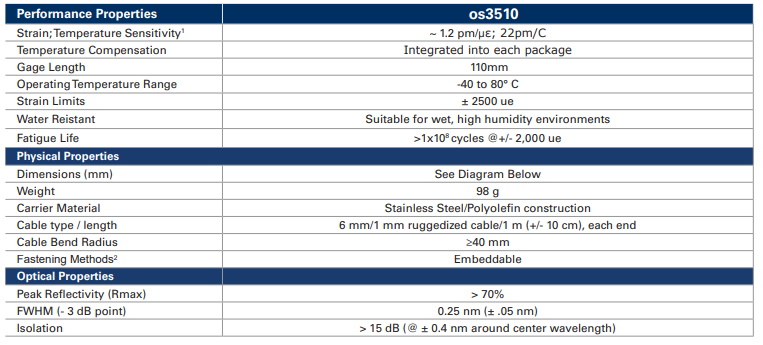

Properties
