os5500 Long Range Displacement Gage

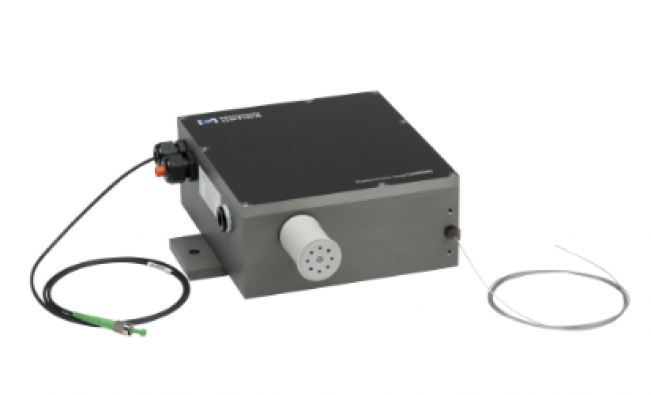

Based on fiber Bragg grating (FBG) technology, the os5500 is specifically designed to measure displacement between two gage points on a specimen surface. The gage design is flexible enough to allow for easy attachment to various substrates, making measurements on me

tal, concrete and other surfaces straightforward. The FBG sensors that comprise the os5500 gage are located within the rugged hard-coat anodized aluminum enclosure which shields them from the elements and allows for installations in harsh environments. This gage can be used alone or in series as a part of an FBG sensor array (which may include strain and temperature gages, accelerometers and other displacement gages). Cabling for such arrays is much less expensive and cumbersome than comparable electronic gage networks. Cables can be joined directly inside the enclosure, eliminating the need for separate junction boxes. The os5500 delivers the many advantages inherent to all FBG based sensors, including EMI immunity - something vibrating wire gages cannot offer.

With each gage, Micron Optics provides a Sensor Information Sheet listing the gage factor and calibration coefficients needed to convert wavelength information into engineering units. Micron Optics’ ENLIGHT Sensing Software provides a utility to calculate and then record, display and transmit data for large networks of sensors.

Key Features

Up to 450mm measurement range using a 1 mm stainless steel cable
Rugged aluminum enclosure suitable for outdoor installations, IP65 rating
Qualified to same rigorous standards used for comparable electronic gages
Internal protection of connectors/splices
Supports multiplexing of multiple gages on one fiber
Fully temperature compensated over entire operating range
Fast response time, stable measurements, high resolution
Designed for simple installation in a variety of applicationsA

Applications

Structures (bridges, dams, tunnels, mines, buildings, oil platforms)
Energy (wind turbines, oil wells, pipelines, nuclear reactors, generators)
Transportation (railways, trains, roadways, specialty vehicles, cranes)
Marine vessels (hull, deck, cargo containers)
Aerospace (airframes, composite structures, wind tunnels, static and dynamic tests)

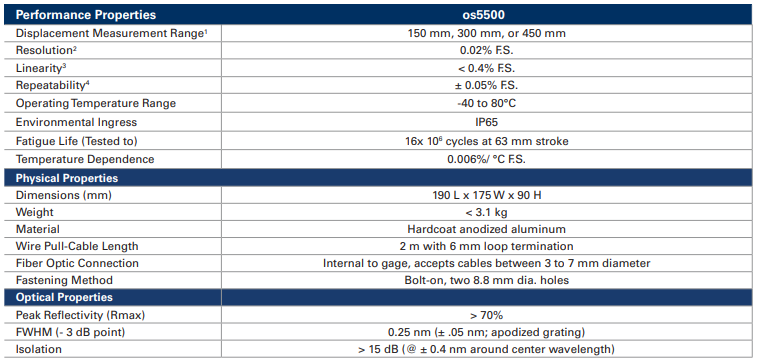

Properties
